brick machine

CODE                         :   042
CONTACT  PERSON :  HAYDAR BOYLA / +90 549 325 66 70
PRODUCTS INCLUDED THE PRICES

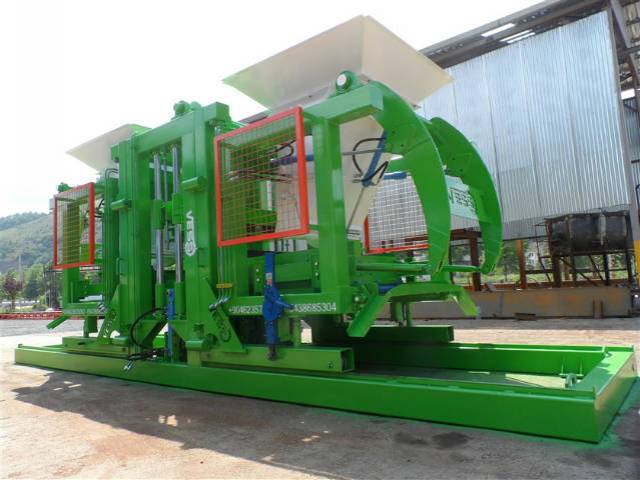

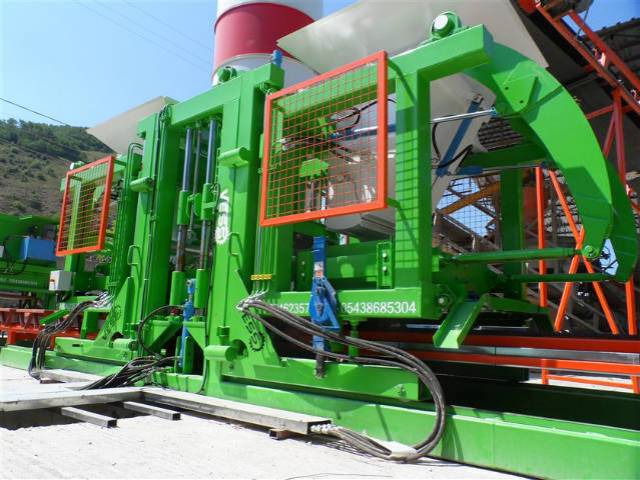

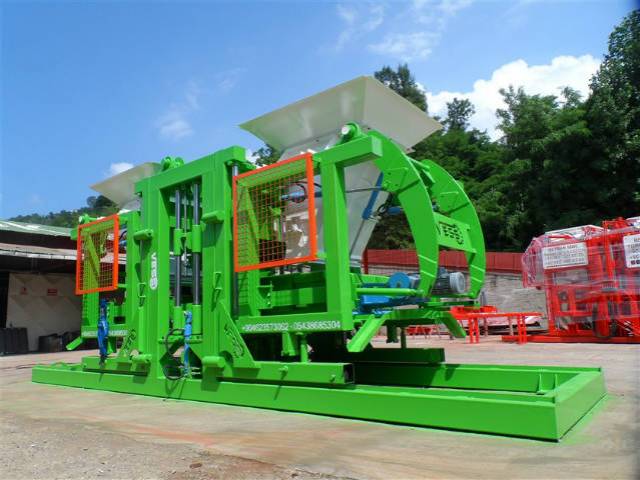

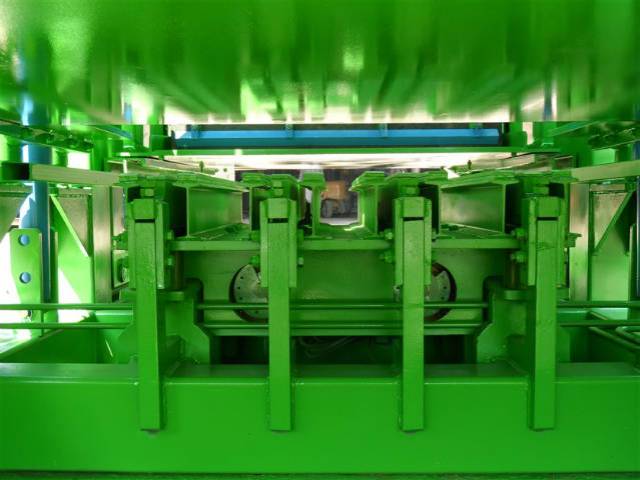

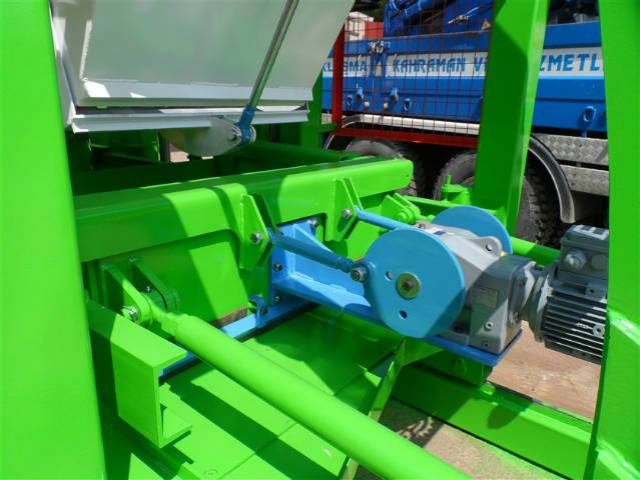

PRS 402 SEMI AUTOMATIC DOUBLE BUCKET PAVING BLOCK-BRICK MACHINE A TWELVE    1 PCS.
PRS 402 DIFFERENT TYPE MOULDS PAVING BLOCK (SD - 52) 2 PCS.
AUTOMATIC  MACHINE FRONT OUTPUT TABLE 1 PCS.

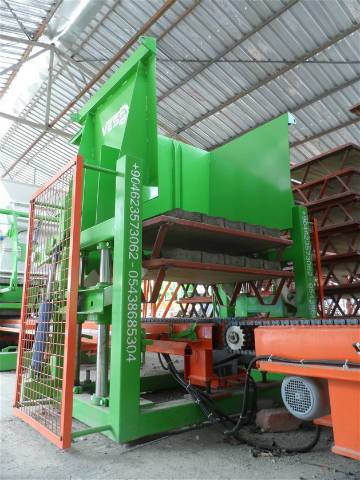

PALLET STACKING ROBOT 1 PCS.
PALLET CONVEYOR REAR ENTRY TABLE SEMI AUTOMATIC SYSTEM 1 PCS.
PALLET DESTACKER ROBOT (EMPTY PALLETS) 1 PCS.
MACHINE OPERATOR PLATFORM 1 PCS.

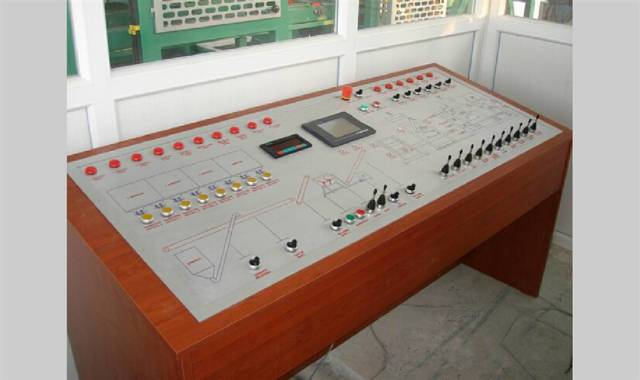

PRS 402 SEMI AUTOMATIC MACHINE ELECTRIC UNIT 1 PCS.
PRS 402 SEMI AUTOMATIC HARDWARE - SOFTWARE (PLC) 1 PCS.
250 dm3 CEBRI MIXER (SIDE TRANSMISSION-WITH WEAR METAL) 1 PCS.
6,5 mt 0,50 x 0,8 CONVEYOR WITH PAN (FIXED) 1 PCS.
12 m3 DOUBLE COMPARTMENT BUNKER (LOW VIBRATION) 1 PCS.
7,5 mt 0,50 X 0,8 CONVEYOR WITH PAN (FIXED) 1 PCS.
SCALE BUNKER FOR AGGREGATE (0.5 dm3) 1 PCS.
AGGREGA TRANSFER BAND UNDER THE 2 COMPARTMENT BUNKER 1 PCS.
COMPRESSOR 50 lt - PNEUMATIC AIR SYSTEM 1 PCS.
SMALL CONVEYOR BELT BETWEEN THE  BUCKETS  (RIGHT - LEFT MOVABLE) 1 PCS.
MIXER OPERATOR PLATFORM 1 PCS.
PRS 402 SEMI AUTOMATIC MORTAR SYSTEM ELECTRIC UNIT 1 PCS.
4 SERIAL SEMI AUTOMATIC /2.QUALITY PROFILE LEGGED, FRAMED PALLETS 500 PCS.
35 TON CEMENT SILO (BASIC MODEL WITH -INLET AND DRAIN PIPE) 1 PCS.
HELEZON 120 - PIPE 4-6 METER RANGE 1 PCS.
25 KG CEMENT SCALE BUCKET (1/2 BAG) 1 PCS.
MANUAL HANDLING COLLECTING ROBOT (FOR ALL CAPACITYS) 1 PCS.
SOME SPECIFICATIONS

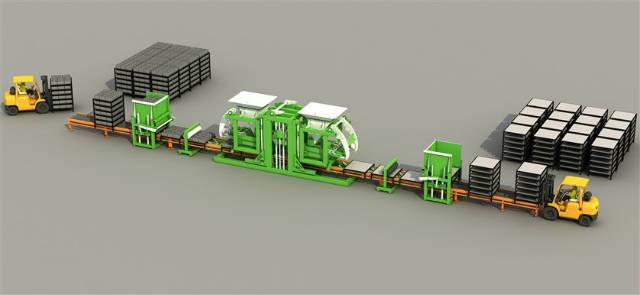

PRS 402 - SEMI AUTOMATIC OPERATED SYSTEM HAS BEEN DESIGNED FOR MORTAR PLANT ON THE GROUND, PLACEMENT IMAGES ARE IN THE CATALOG. THE SEMI AUTOMATIC MACHINE HAS BEEN PREPARED ON THE BASIS OF 24 HOURS WORK SHIFT AND IF ENOUGH PALLETS ARE AVALIBLE , WITH WORKING 8 HOURS DAILY SHIFT, THE MACHINE CAN PRODUCE BETWEEN  350 - 400 m2 RANGE PAVING BLOCK. BECAUSE THE WORKING PRINCIPLES OF THE SEMI AUTOMATIC MACHINES ARE BASED TO THE AUTOMATION SYSTEM, DAILY PRODUCTION CAPACITY IS GIVEN BY FULL VALUE.

DESCRIPTION
FOR THE MACHINE WITH THE PROPERTYS GIVEN ABOVE, RECOMMENDED INSTALLATION AND STOCK AREA AVERAGE IS 1250 m2 THERE IS NO OBLIGATION TO ROOFING OF THE PRODUCING AREA. CONCRETE FLOOR OF THE INSTALLATION COURSE IS ADVISED TO BE AT THE RATE OF 1/3.

THE PRODUCTS MANUFACTURED BY SEMI AUTOMATIC MACHINES SEND TO THE DRYING AREA AS STACKED SYSTEM, THEREFOR LESS SQUARE METER IS WRITTEN COMPARED TO THE MANUAL SYSTEM.

IN ADDITION; THE PRODUCT COLLECTION ON STACKED PALLETS WILL BE DONE FROM THE REAR ENTRY TABLE, THIS PROVIDES FOR THE STAFF TO WORK TOGETHER AND MORE EFFICIENTLY. IN THIS CONTEXT WE RECOMMEND TO YOU CHOICE IN FAVOUR OF AUTOMATIC MACHINES.

OTHER PROPERTIES
PRODUCING ON ONE PALLET: 12 PCS. PAVING BLOCK 4 PCS. OF 20 CM BRICK AND ALL TYPES OF CURB STONES.
PALLET SIZE:  50 x 100 x 3,5 cm
PRODUCTION STAFF: 3 EMPLOYES (1 EMPLOYE FOR MIXER /1 EMPLOYE FOR MACHINE  / 1 EMPLOYE FOR FORKLIFT)
EXPORT TRANSPORT VOLUME AVERAGE IS 6 PCS. CONTAINER OF 40 m3 .






COMMERCIAL RULES
THE CAMPAIGN PRICES ARE VALID UNTIL 30.12.2014
DELIVERY TIME IS MAXIMUM 90 WORKING DAYS. OPERATORS COURSE TO ONE OF YOUR EMPLOYE WILL GIVEN BY OUR COMPANY BEFORE DELIVERY.

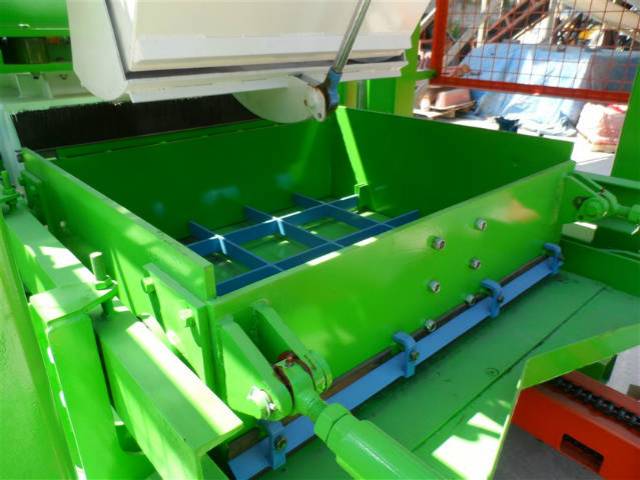

THE MACHINE HAS BEEN DESIGNED WITH DOUBLE MORTAR BUCKET.
EXPERIMENT AND PRODUCTION TEST WILL BE DONE IN OUR FACTORY FIELD WITH OBSERVATION OF THE RECIPIENT.COMMISSIONING PROCESS ALSO CAN BE DONE ON THE FIELD OF THE CUSTOMER, WHERE THE INSTALLATION WILL BE ESTABLISHED. THE COSTS FOR TRANSPORTATION AND ACCOMODATION OF THE MONTAGE PERSONEL AND HYDRAULIC OIL FOR THE MACHINE SHALL BE PAID BY THE RECIPIENT.
BY EDITING OF THE OFFICIAL CONTRACT 30% OF THE ORDER WILL BE CHARGED IN ADVANCE. THE REMAINING CASH WILL BE CHARGED BY DELIVERY. THE TOTAL PAYMENT OF THE ORDER, MADE IN ADVANCE 5% MORE EXTRA DISCOUNT IS APPLIED.
OUR PRICES ARE FACTORY DELIVERY PRICES IN TRABZON TURKEY.
TRANSPORT AND INSURANCE COSTS ARE NOT INCLUDED IN THE PRICE, BY OVERSEAS SALES, TAXES ARE NOT BE REQUESTED.
ALL OF OUR PRODUCTS ARE SUITABLE FOR SALE ON THE BANK LOAN AND LEASING.
ALL OF OUR MANUFACTURING DEFECTS IN ALL OF OUR PRODUCTS ARE GUARANTEED FOR 2 YEARS. IN CASE OF FAILURE WE GUARANTEE TO INTERVENE DOMESTIC 48 HOURS, ALL AROUND THE WORLD BETWEEN 72 - 120 HOURS.THE PREPARATIONS YOU HAVE TO DO IN YOUR FIELD,  DISCOVERY AND INSTALLATION PLAN WILL BE GIVEN FREELY THROUGH OUR COMPANY.
SPECIAL OFFER FOR THE CUSTOMERS
FOR THE CUSTOMERS WHO ORDERS EXTRA MATERIALS LIKE PALLETS, SILO, BUNKER, PACKING  MATERIALS , FORKLIFT ETC. %10 DISCOUNT IS APPLIED.
