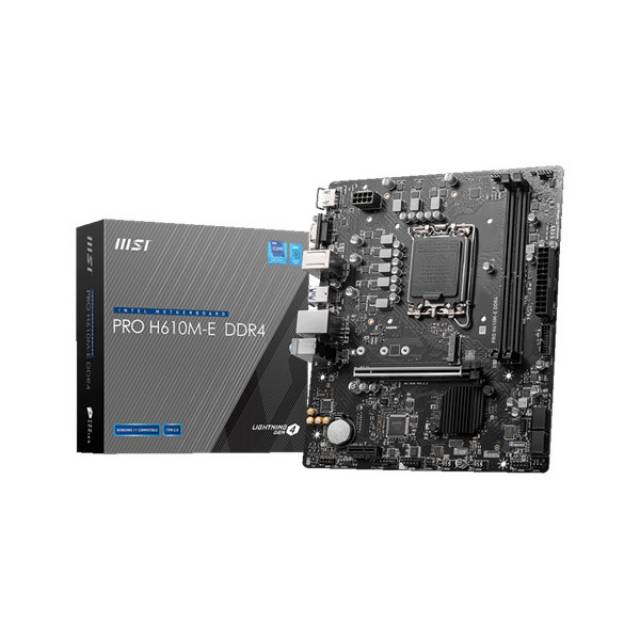

MSI Alaplap S1700 PRO H610M-E DDR4 Intel H610, mATX PROCESSOR Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1 Processor socket LGA1700 Please go to www.msi.com to get the newest support status as new processors are released. See supported processors CHIPSET Intel® H610 Chipset MEMORY 2x DDR4 memory slots, support up to 64GB 1 Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Please refer to www.msi.com for more information on compatible memory. See supported memory EXPANSION SLOT 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1 ONBOARD GRAPHICS 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. SATA PORTS 4x SATA 6Gb/s ports (From H610 chipset) M.2 SSD SLOT 1x M.2 slot (Key M) (from CPU) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices AUDIO Realtek® ALC897 Codec 7.1-Channel High Definition Audio LAN 1x Realtek® RTL8111H 1Gbps LAN controller POWER CONNECTORS 1x 24-pin ATX main power connector 1x 8-pin +12V power connector INTERNAL USB CONNECTORS 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) Supports additional 4 USB 2.0 ports FAN CONNECTORS 1x 4-pin CPU fan connector 2x 4-pin system fan connectors SYSTEM CONNECTORS 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector
