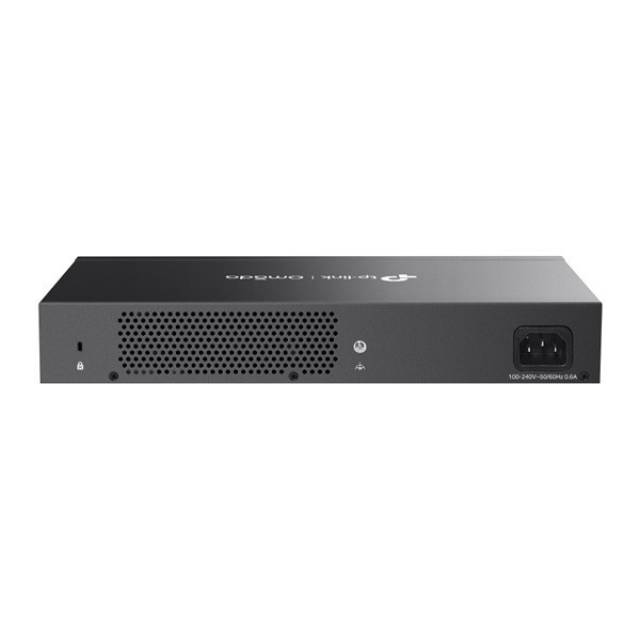

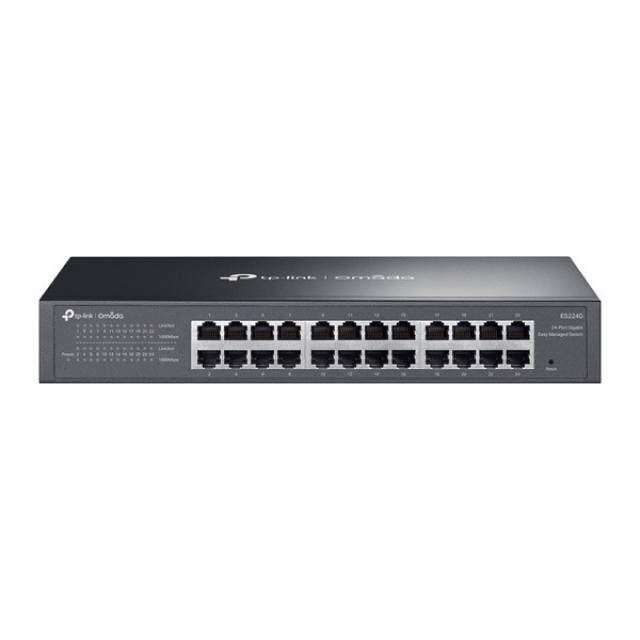

TP-LINK Switch 24x1000Mbps Fémházas Easy Smart (Omada), ES224G

TP-LINK Switch 24x1000Mbps Fémházas Easy Smart (Omada), ES224G HARDWARE FEATURES Interface • 24× 10/100/1000 Mbps RJ45 Ports• Auto-Negotiation/Auto MDI/MDIX Fan Quantity Fanless Installation • Desktop• Rackmountable Physical Security Lock ? Power Supply 100-240 V~50/60 Hz Dimensions ( W x D x H ) 11.6 × 5.5 × 1.7 in (294× 140 × 44 mm) Surge Protection ±6kV PERFORMANCE Switching Capacity 48 Gbps Packet Forwarding Rate 35.7 Mpps MAC Address Table 8K Packet Buffer Memory 4 Mbit Jumbo Frame 15 KB SOFTWARE FEATURES Quality of Service • Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control? L2 Features • Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP L2 Multicast • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave VLAN • MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID Transmission Method Store-And-Forward Management Features Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller Management Features • Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration† OTHERS Certification FCC, CE, RoHS Package Content • ES224G• Power Cord• Rubber Feet• Mounting Brackets• Screws• Installation Guide Environment • Operating Temperature: -5?~50? (23?~122?)• Storage Temperature: -40?~70? (-40?~158?)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing
