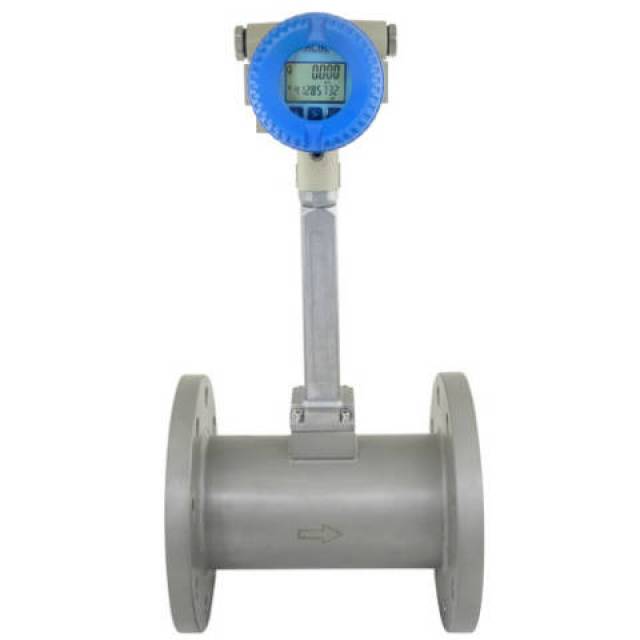

Alia HART Vortex Flowmeter,AVF7000 -Steam flow meter ,GAS FLOW

AVF7000 is a Vortex Flowmeter based on Von Karman theory of vortices generated by a bluff body in the pipe. The number

of vortices are linearly proportional to the volumetric flow in the pipe.

The AVF7000 is versatile flowmeter widely used for Gases, Steam & Liquid applications. There are no moving parts and comes with either flange or wafer connection. Standard configuration has local indication for flowrate and total flow as well as 4-20mA with HART signal and pulse output functions. The microprocessor design can filter out erroneous signals as well as interfence caused by pipe vibration.
FEATURES

Simplified setup and self-diagnostic functions

Auto. Temperature & Pressure compensation

4-20mA with HART signal and pulse outputs, user selectable

A very wide selection of sizes

Wide temperature range up to 420 oC

Non-volatile memory for setup and calibration
SPECIFICATION

Size:15,20,25,32,40,50,65,80,100,125,150,200,250,300,350,400,450,500mm

Communication:

HART or RS485 (MODBUS Protocol)

Material:

Stainless Steel 301 / 304 / 316

Accuracy:

Liquid:+/- 0.7% of reading

Gas & Steam:+/- 1.0% of reading

Process Connection:

Flange / Wafer

Temperature:

-40 ~ +280 Deg. C (Standard)

-40 ~ +420 Deg. C (Optional)

Protection:

IP 65

Explosion Proof, Exd IIC T6

Intrinsically Safe, E ex ia IIC T4

Local display:

4 lines LCD

4 digit flowrate

8 digit Totalizer
