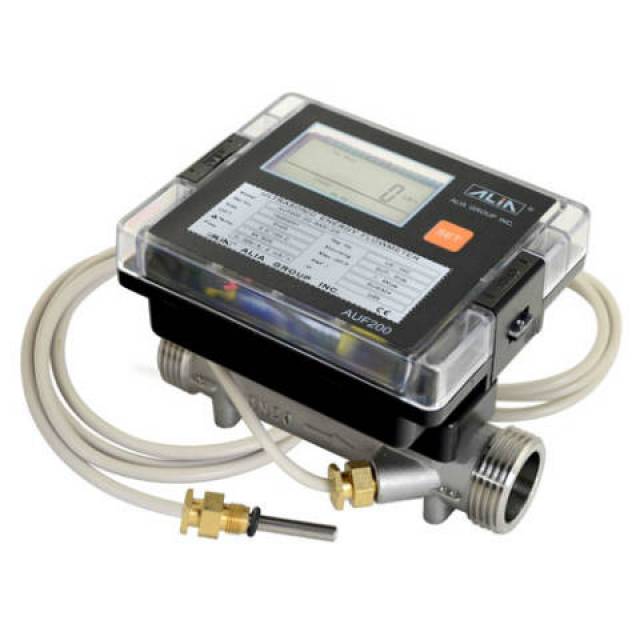

AUF200 Series measure flow or energy of water running in heating/cooling pipe by temperature sensor based on ultrasonic flowmeter. It's simple, easy to install and battery powered, no need of external power. It can display flow rate, total flow, total heat, total cool, heat power and supply/return temperature etc.. FEATURES
Display flow rate, total flow, heating and cooling energy
3.6V battery power, continuous working for 6 years
Auto turn off LCD if no operation within 3 minutes, saving power
Supply or return alternatively for mounting
Displayer 270o rotational
Medium temperature up to 105 oC, DT 0-80 oC
Threaded connection, easy for installation
M-BUS communication, easy for remote control and reading
Response time<15s SPECIFICATION
Measuring Principle:Ultrasonic, Time difference W path
Size:15mm, 20mm, 25mm, 32mm, 40mm
Sensor Type:PT1000 2 wire, Class B
Medium Temp. Range:0 ~ +105 deg.C
Temp. Resolution:0.1 deg.C
Temp. Difference:3 - 80 deg.C
Temp. Error:< 0.1 deg.C
Temp. Cable Length:1.5m
Display:2 lines, LCD
TotalizerM3, KW or GJ , Hour, 8 Digit
Flow Rate:M3/h, 4 digit
Energy:KW.h (Standard), GJ (Optional)
Pressure Drop:Less than 0.2 Kg/cm2 (at Qn / Q3)
Battery Life:> 6 years (3800mA)
Record Cycle:18 months
Protection Class:IP65
Communication:M-BUS (optional)
Communicator:M-BUS private communicator
Accessory:Coupling x 1 Pair,Ball Valve with temperature sensor hole,M-BUS private communicator
