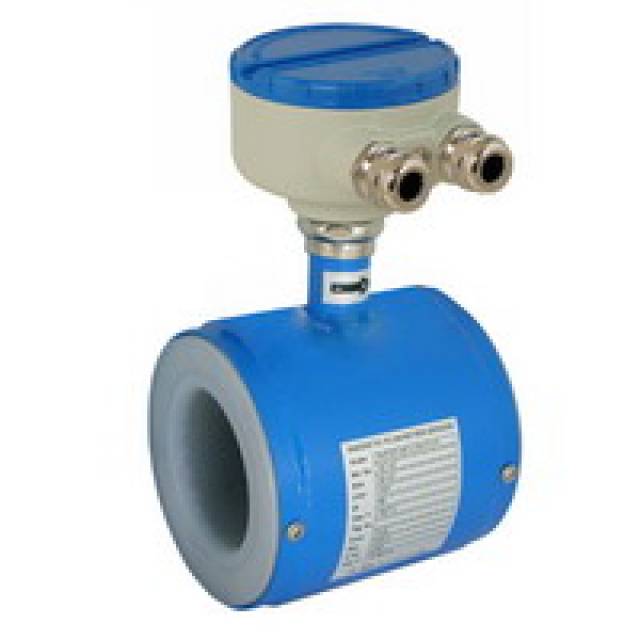

Waste water measurement ALIA wafer AMF500 Electromagnetic Flowmeter

AMF500 Series is a wafer type electromagnetic flowmeter ideal for conductive liquids. It comes in sizes from 25 to 200 mm.

AMF500 is widely used for tap-water, waste water, food & beverage, pulp & paper and many other industrial fluid.

AMF500 Series electromagnetic flowmeter could be used in compact or separate model with AMC Series converter of electromagnetic flowmeter.
FEATURES

Light and compact version

Flow Velocity range: 0-12 m/s, precise in low flow applications

It comes any flanges such as ANSI, DIN, JIS... etc

Excellent for high pressure application

Protection class: IP68 available; sensor submersible

FEP Liner is suitable for vacuum tube

High accuracy of +/-0.4% value of reading (or+/-0.2% value of reading)

With Forward / Reverse flowrate measurement function
SPECIFICATION

Pipe Size:25,32,40,50,65,80,100,125,150,200mm

Measuring Range:

Velocity 0-0.25 m/s min.

0-12 m/s max.

Material:

Measuring Tube:

Stainless Steel 304

Coil Housing:

Carbon Steel (standard)

Stainless Steel 304(Option)

Stainless Steel 316(Option)
Liner:

FEP
Protection:

IP 68

IP68(Submersible)
Temperature:

40 to +180 Deg.C
Max. Pressure:

16 Kg/cm2 (standard)

40 Kg/cm2(option)
